PRV 6MB200-4 v2 Midbass 4ohm

PRV 6MB200-4 v2 Midbass 4ohm

Regular price $30.00 USD
Regular price Sale price $30.00 USD
Sale Sold out
Shipping calculated at checkout.

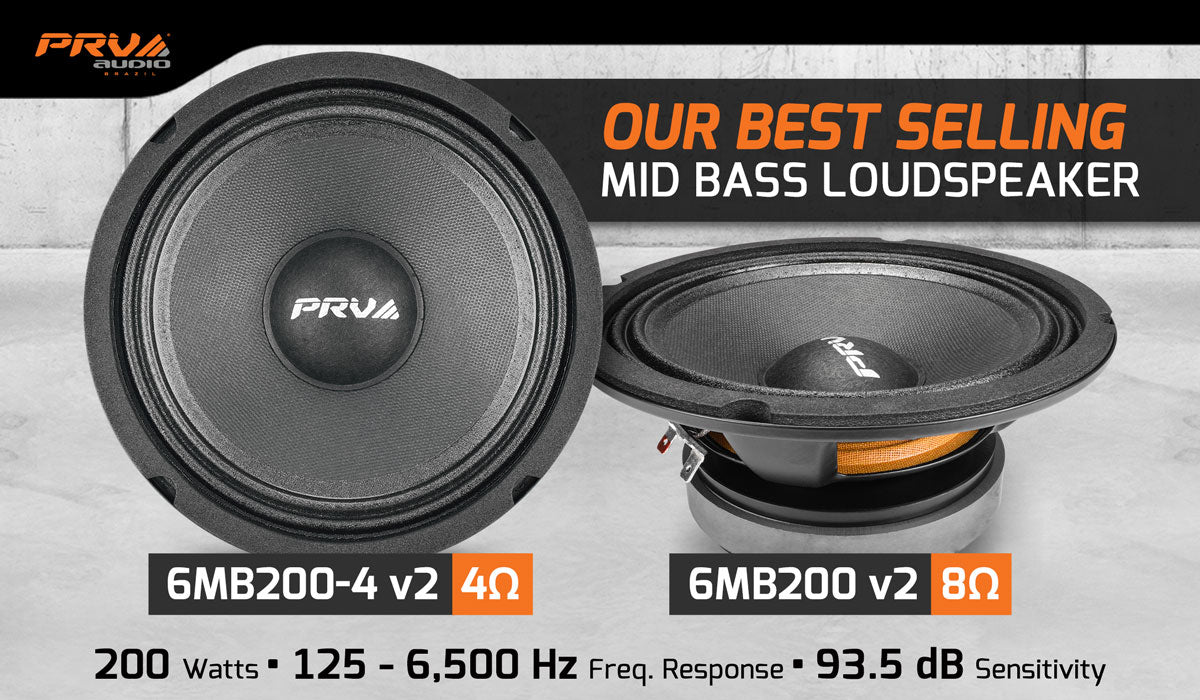

The PRV Pro Audio 6MB200-4 v2 midbass woofer offers exceptional durability and the smooth punch of mid bass response in a small enclosure. This midbass is perfect for car audio applications such as door speakers to significantly increase output using the stock location.

  • A deep midbass response along with a strong vocal response
  • Outstanding durability and strong impactful midbass for a car stereo

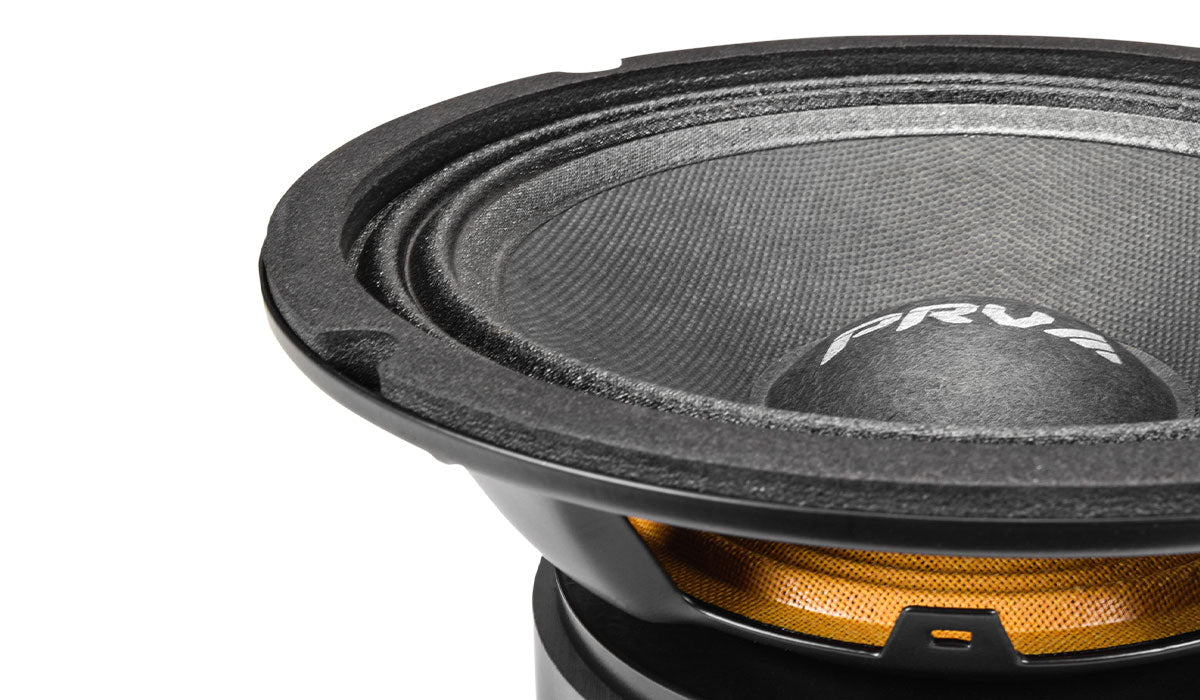

  • Natural paper cone and double-roll surround for smooth response
  • Handles 200 Watts, guaranteeing endurance at loudest volumes
  • Impressive choice for car audio systems – 4 Ohm impedance also available in 8 Ohm

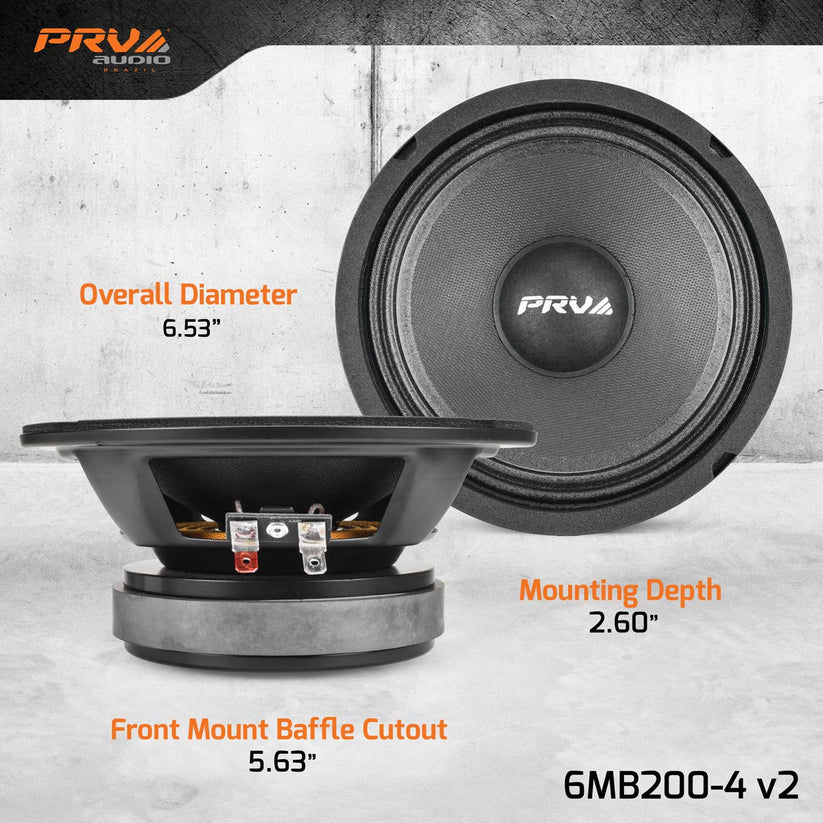

The 6MB200 v2 now has a more extended midrange response, up to 6.5 kHz giving it clean vocals. Loud and clear vocals all within 2.60″ of mounting depth without  sacrificing quality and performance.

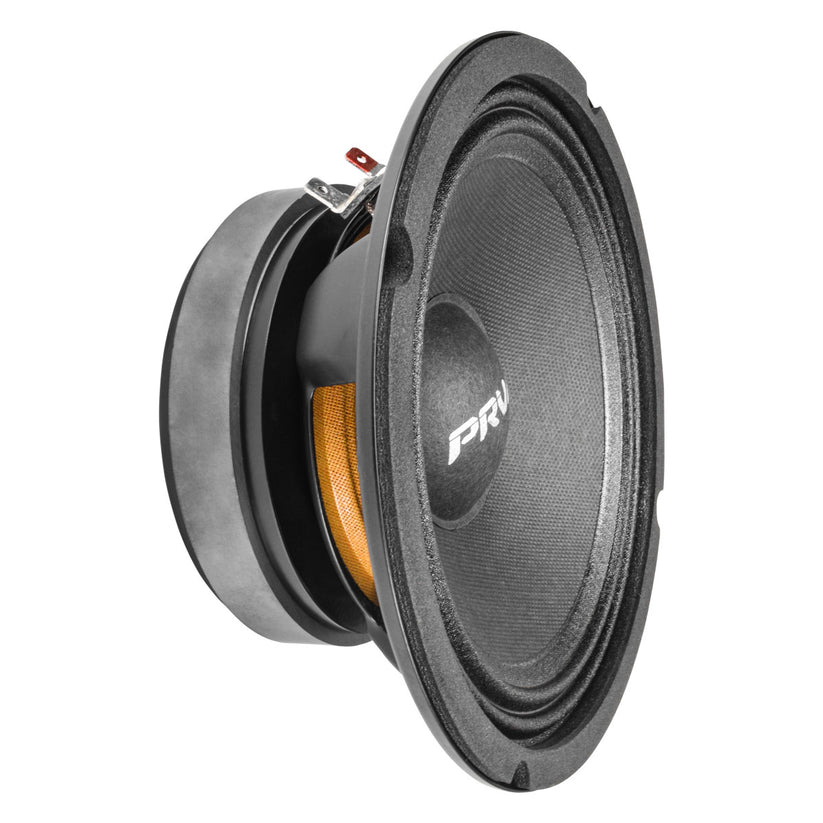

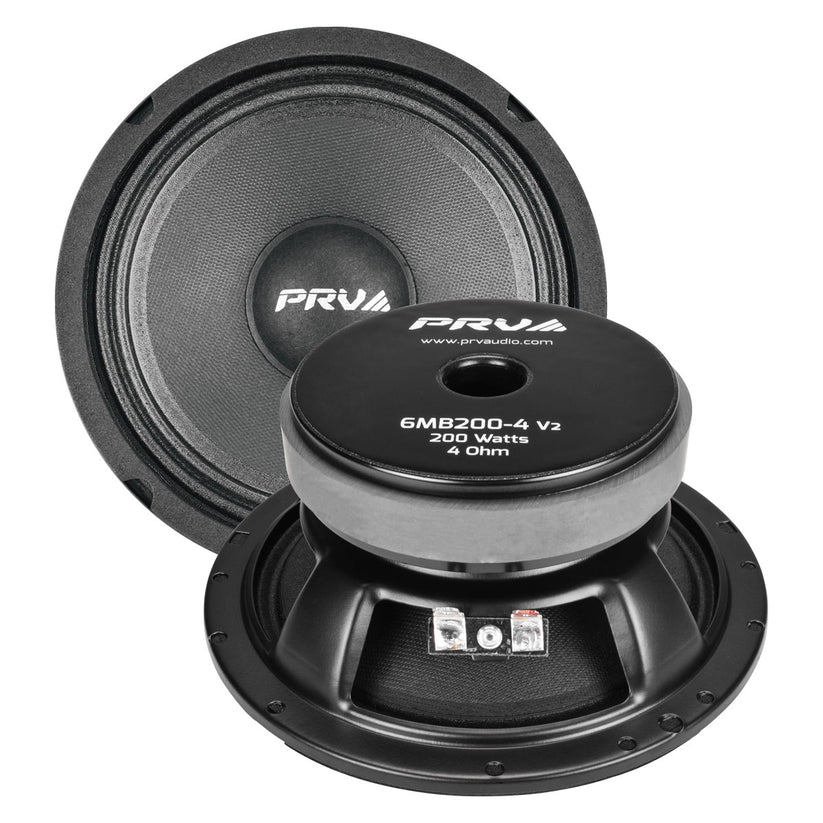

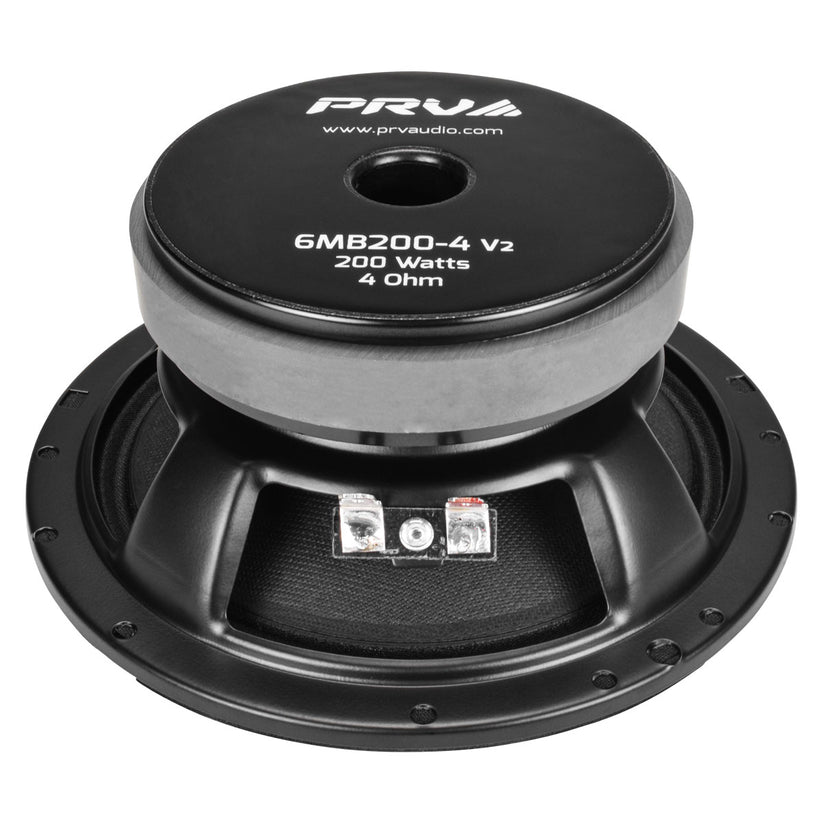

The magnet and motor assembly are attached to a sturdy reinforced steel frame, ensuring a solid support structure and long lasting play in most any environment.

Its light weight of only 3.3 Lbs helps to keep your enclosure light, making it perfect for custom door panels.



GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

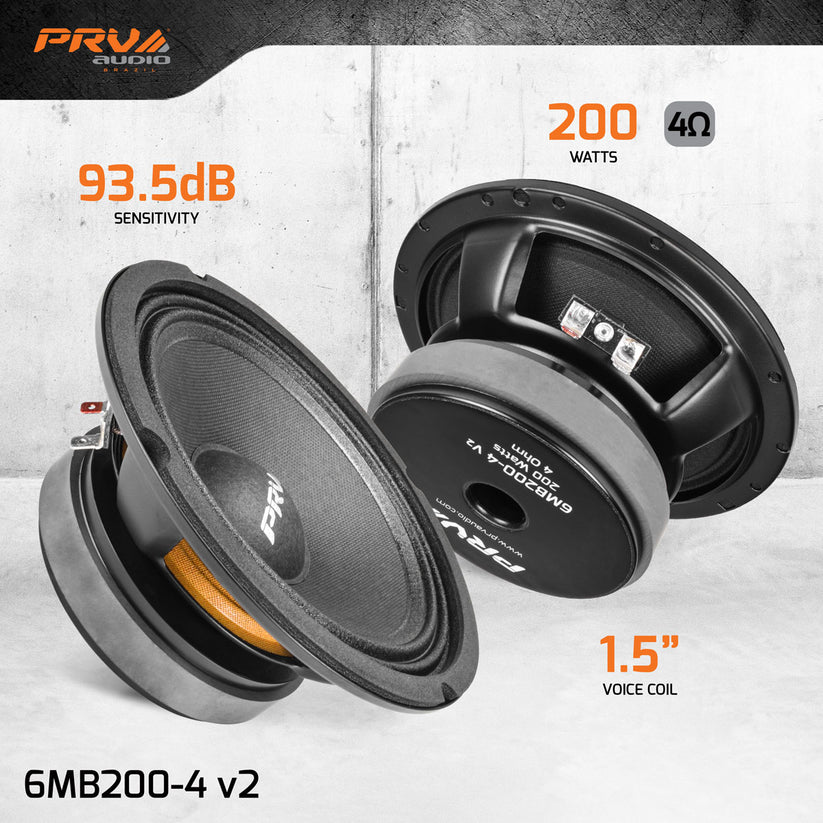

  • Nominal Diameter6″ (152 mm)
  • Nominal Impedance4 Ohm
  • Nominal Power Handling*100 Watts
  • Continuous Program Power (RMS)**200 Watts
  • Max Peak Power***400 Watts
  • Sensitivity 2.83V at 1m93.5 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling125 Hz** **12db Per Octave Crossover
  • Frequency Response at -10dB125 – 6,500 Hz
  • Voice Coil Diameter1.5″ (38 mm)
  • Voice Coil WireCopper
  • Voice Coil Winding Depth12.5 mm
  • Former MaterialKapton
  • Magnetic Gap Depth5.8 mm
  • Frame MaterialStamped Steel
  • Magnet TypeFerrite

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 3.97 l
  • Excursion (mathematical)**
    • Xmax
    • 4.80 mm
  • Free Air Resonance
    • Fs
    • 123.79 Hz
  • Mechanical Factor
    • Qms
    • 20.84
  • Electrical Factor
    • Qes
    • 1.02
  • Total Factor
    • Qts
    • 0.97
  • Cone Area
    • Sd
    • 154 cm²
  • Mechanical Mass
    • Mms
    • 11.89 g
  • BI Factor
    • Bl
    • 5.79 Tm
  • Dc Resistance
    • Re
    • 3.7 Ohm
  • Inductance
    • Le
    • 0.18 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 10.92 g
  • Mechanical Compliance
    • Cms
    • 0.139 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
