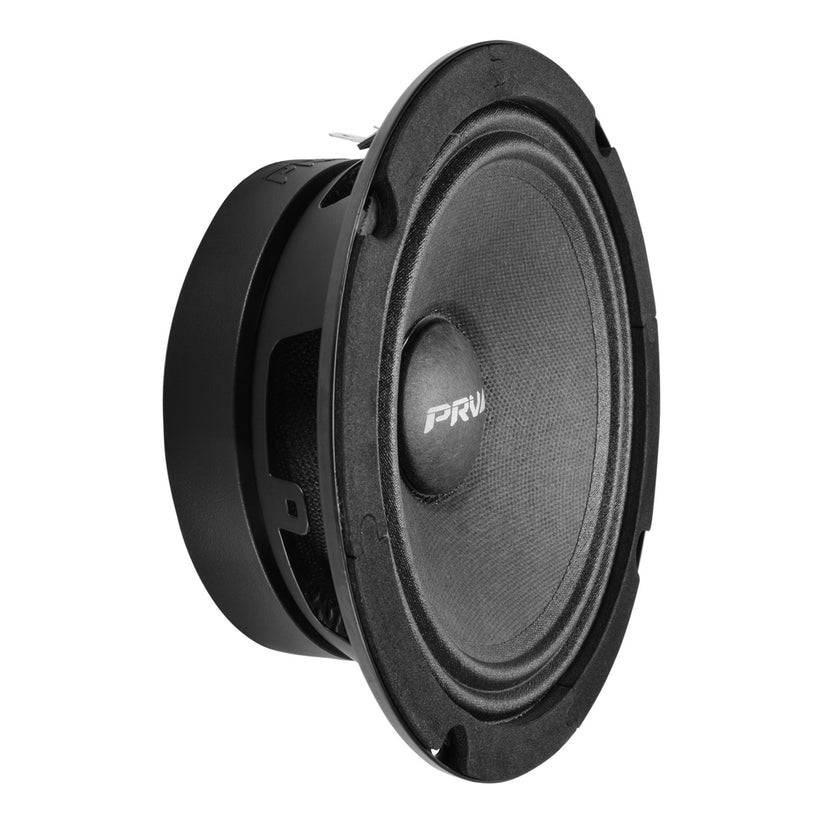

PRV 6MR200A-4 Midrange 4ohm

PRV 6MR200A-4 Midrange 4ohm

$25.00 USD
$25.00 USD
Sale Sold out
Shipping calculated at checkout.

GENERAL SPECIFICATIONS

  • Nominal Diameter6.5″ (165 mm)
  • Nominal Impedance4 Ohm
  • Sensitivity 2.83V at 1m94 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling150 Hz** **12db Per Octave Crossover
  • Frequency Response at -10dB155 – 11,000 Hz
  • Voice Coil Diameter1.5″ (38 mm)
  • Voice Coil WireCopper
  • Voice Coil Winding Depth8.0 mm
  • Former MaterialKapton
  • Magnetic Gap Depth5.5 mm
  • Frame MaterialStamped Steel
  • Magnet TypeShallow Mount

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 3.89 l
  • Excursion (mathematical)**
    • Xmax
    • 2.62 mm
  • Free Air Resonance
    • Fs
    • 138.3 Hz
  • Mechanical Factor
    • Qms
    • 9.47
  • Electrical Factor
    • Qes
    • 1.08
  • Total Factor
    • Qts
    • 0.97
  • Cone Area
    • Sd
    • 137 cm²
  • Mechanical Mass
    • Mms
    • 8.89 g
  • BI Factor
    • Bl
    • 4.92 Tm
  • Dc Resistance
    • Re
    • 3.4 Ohm
  • Inductance
    • Le
    • 0.18 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 7.98 g
  • Mechanical Compliance
    • Cms
    • 0.149 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
