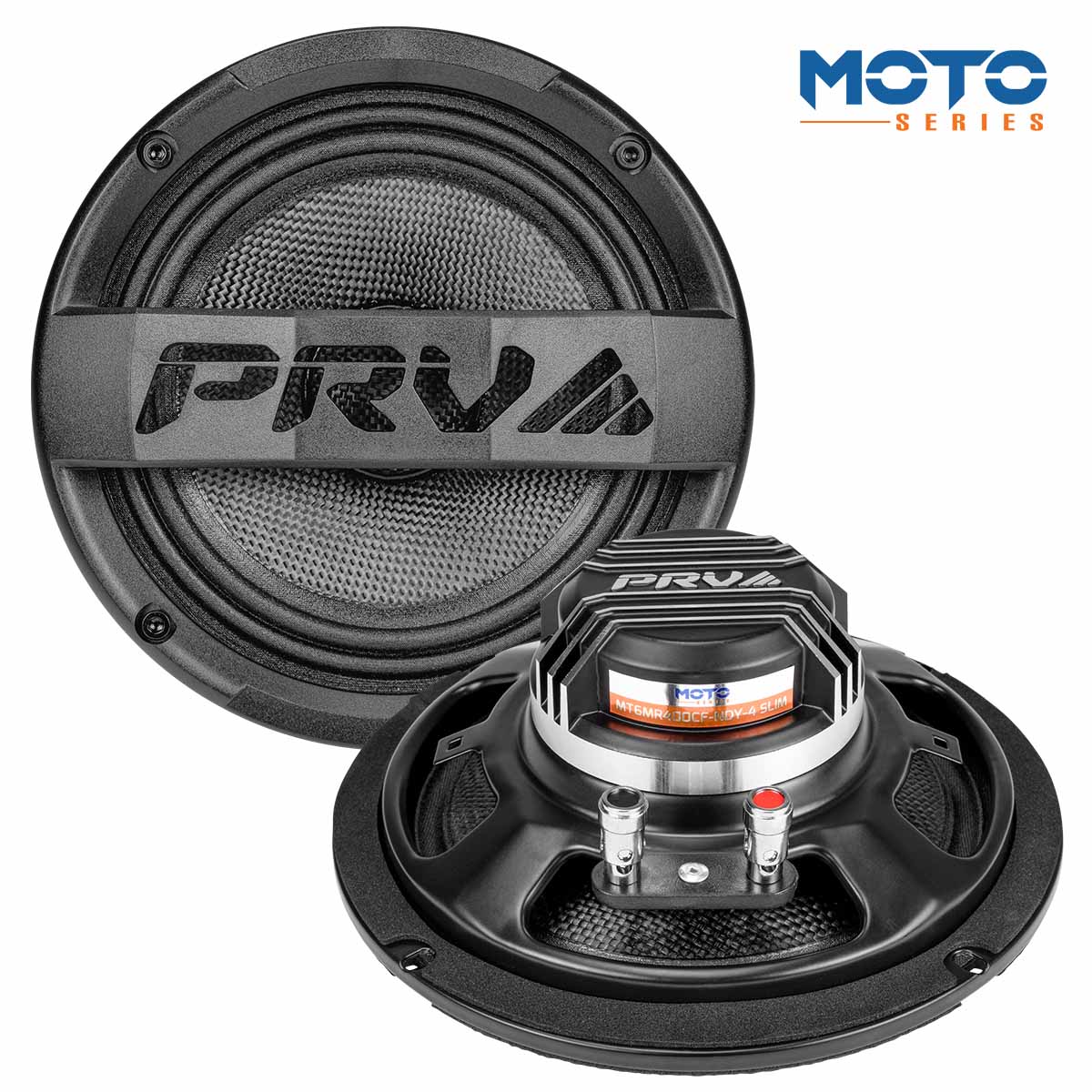

PRV MT6MR400CF-NDY-4 SLIM Midrange

PRV MT6MR400CF-NDY-4 SLIM Midrange

Regular price $130.00 USD
Regular price Sale price $130.00 USD
Sale Sold out
Shipping calculated at checkout.

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

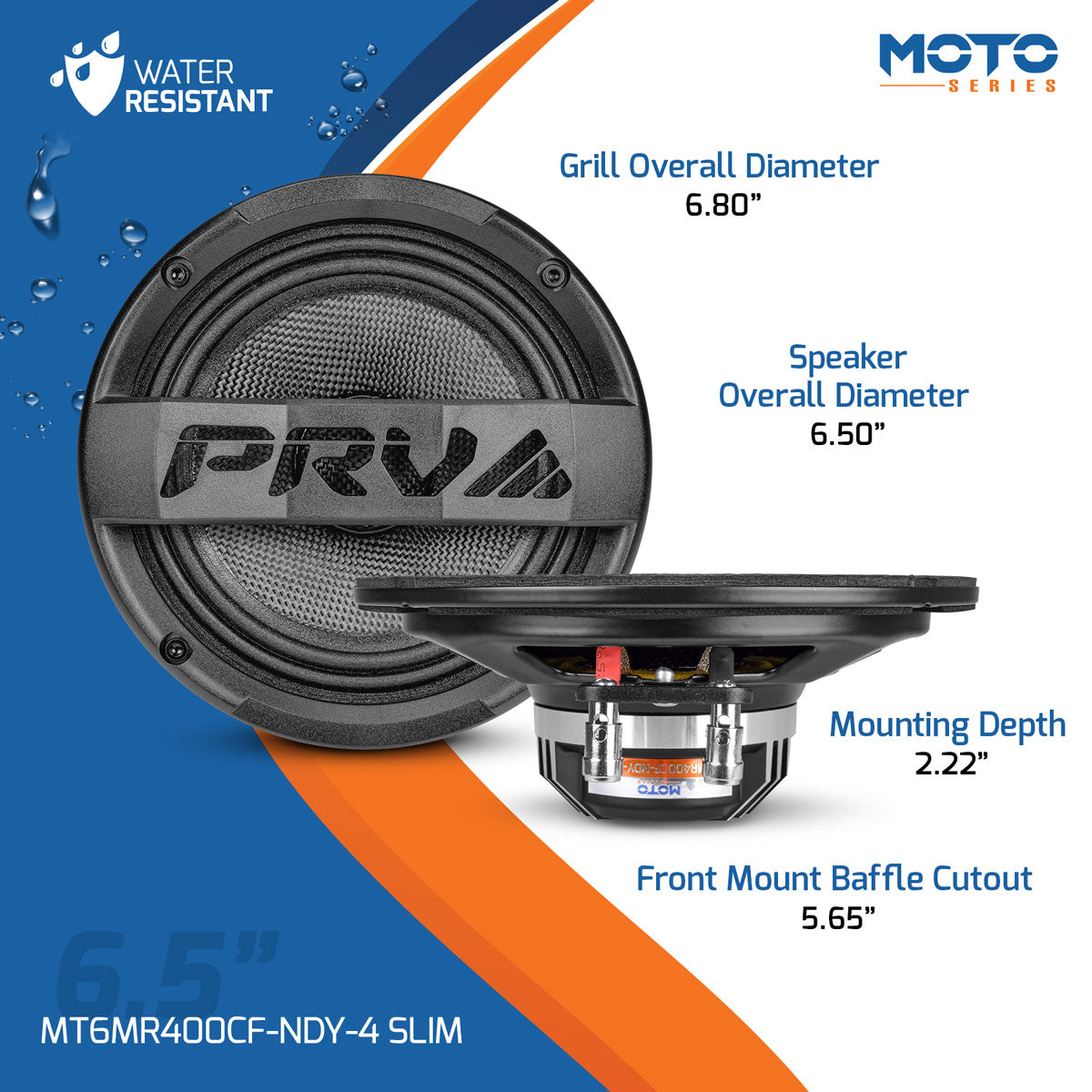

  • Nominal Diameter6″ (152 mm)
  • Nominal Impedance4 Ohm
  • Nominal Power Handling*200 Watts
  • Continuous Program Power (RMS)**400 Watts
  • Max Peak Power***800 Watts
  • Sensitivity 2.83V at 1m95 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling120 Hz* *12db Per Octave Crossover
  • Frequency Response at -10dB120 – 12,000 Hz
  • Voice Coil Diameter1.5″ (38 mm)
  • Voice Coil WireCCAW
  • Voice Coil Winding Depth10.0 mm
  • Former MaterialKapton
  • Magnetic Gap Depth5.0 mm
  • Frame MaterialStamped Steel
  • Magnet TypeNeodymium

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 3.38 l
  • Excursion (mathematical)**
    • Xmax***
    • 3.75 mm
  • Free Air Resonance
    • Fs
    • 138.9 Hz
  • Mechanical Factor
    • Qms
    • 6.76
  • Electrical Factor
    • Qes
    • 0.68
  • Total Factor
    • Qts
    • 0.62
  • Cone Area
    • Sd
    • 139 cm²
  • Mechanical Mass
    • Mms
    • 10.47 g
  • BI Factor
    • Bl
    • 6.85 Tm
  • Dc Resistance
    • Re
    • 3.5 Ohm
  • Inductance
    • Le
    • 0.168 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 9.55 g
  • Mechanical Compliance
    • Cms
    • 0.125 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

View full details
