Los Gorditos del Tukuteo
TPT-D5000ND
TPT-D5000ND
Regular price
$445.00 USD
Regular price
Sale price
$445.00 USD
Unit price
/
per
Shipping calculated at checkout.
$445.00 USD
Couldn't load pickup availability

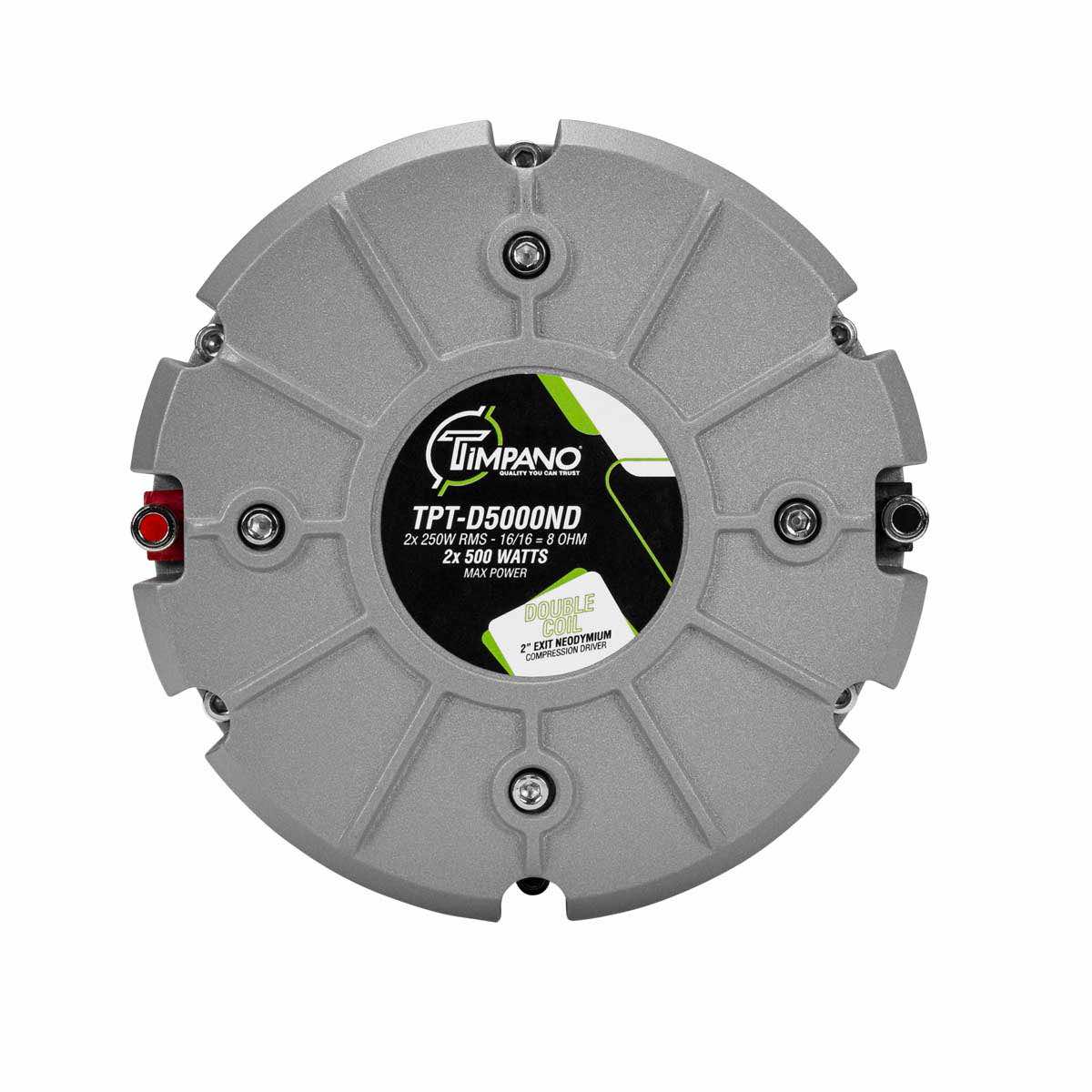

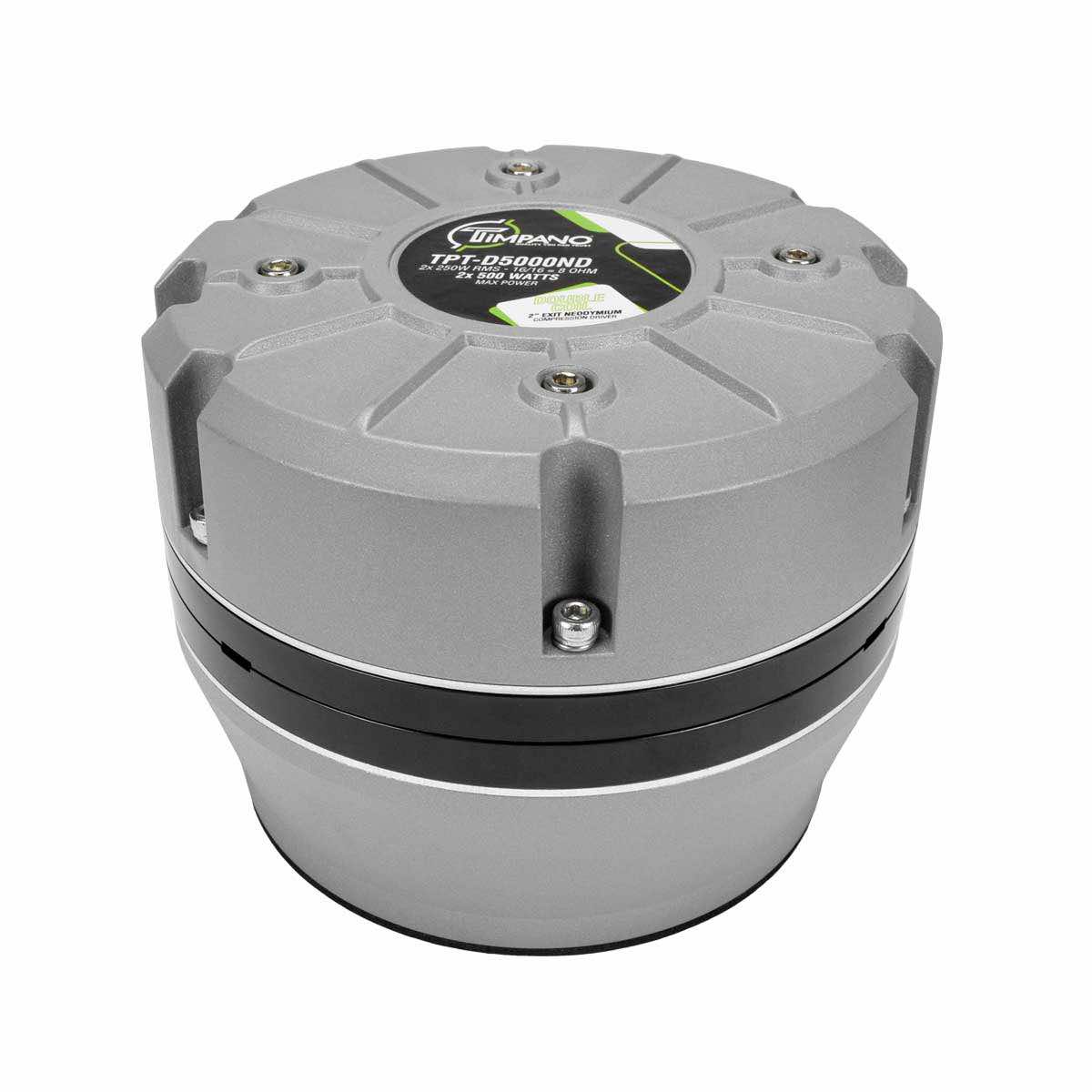

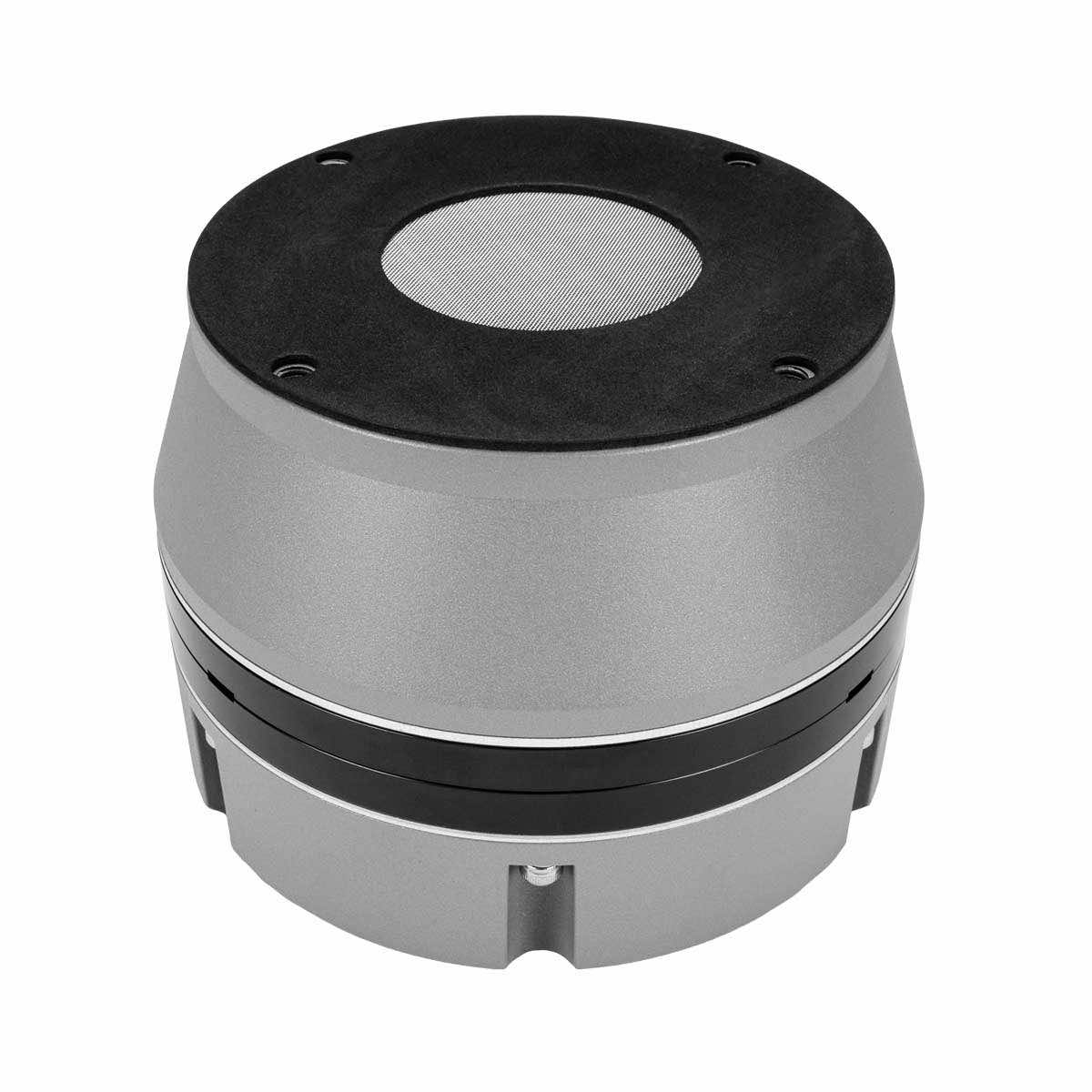

Double Coil 2″ Exit Neodymium Compression Driver
Specially designed for sound competitions, to take your custom system to the next level. TPT-D5000ND offers unsurpassed vocal and mid range reproduction.
Specs:
- 2x 500 Watts Max Power
- 2x 225 Watts RMS Power
- Impedance: 16 Ohm + 16 Ohm (wired in parallel to a total of 8 Ohm)
- Sensitivity: 123 dB
- Frequency Response: 400Hz – 9000Hz
- Mylar Diaphragm with 3.5″ Voice Coil
Recommended High Pass Filter:
- 2x 500 Watts Max Power
- 2x 225 Watts RMS Power
- Impedance: 16 Ohm + 16 Ohm (wired in parallel to a total of 8 Ohm)
- Sensitivity: 123 dB
- Frequency Response: 400Hz – 9000Hz
- Mylar Diaphragm with 3.5″ Voice Coil
Recommended High Pass Filter:
- 600 Hz under 400 Watts of Amplifier RMS Power with 18dB Slope
- 500 Hz under 225 Watts of Amplifier RMS Power with 12dB Slope
Sizing:
- Overall Size: 5.25″ diameter x 4″ height
- Weight: 7.10 Lbs
Original Manufacturer Replacement Diaphragms that Maintain Peak Performance are available:TPT-RPD5000ND
Technical Details
GENERAL SPECIFICATIONS
- Exit Throat Diameter2” (50mm)
- Nominal Impedance8 Ohm (Wired in parallel)
- Continuous Program Power (RMS)**2X 500 Watts
- Sensitivity 2.83V at 1m123 dB
- Frequency Response at -10dB400 – 9,000 Hz
- Magnet TypeNeodymium
